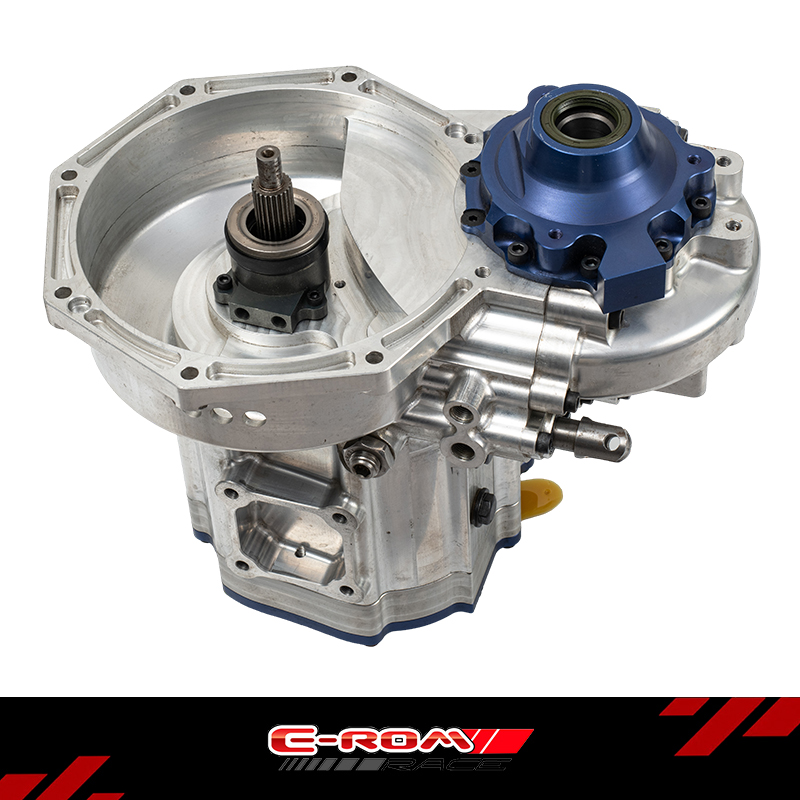

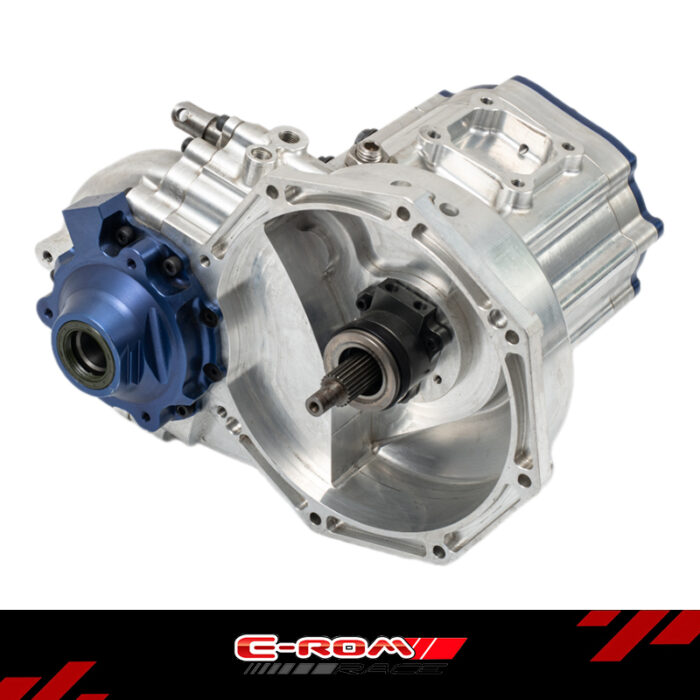

The E-ROM 6-speed sequential transmission is specifically developed for front-wheel drive racing cars and optimized for engines such as the L15B, B16B, and K20A. It adopts a compact design concept to achieve maximum transmission efficiency within a limited space. It minimizes power loss and provides precise shifting experience. This product has been specially optimized for the unique torque steer problem of front-wheel drive vehicles, ensuring precise handling performance even under high power output.
– Gear material: Made of 8620 chrome-molybdenum alloy steel, carburized and quenched, with a surface hardness of HRC60.
– Rated torque: Can support up to 550 wheel torque.
– The housing is made of high-strength 6061 aluminum alloy, effectively reducing the width compared to traditional designs.
– Manufacturing process: Precision low-pressure forging combined with five-axis CNC precision machining.
Standard gear ratio of 6-speed gearbox:
1st 2.833
2nd 2.071
3rd 1.611
4th 1.285
5th 1.045
6th 0.869
Final transmission ratio:
14:54 3.714, 12:54 4.5, 12:59 4.91
Includes: Adapter Kit, single-disc clutches, gear shifting devices, Gear position sensor, and gear displays
